- 12mm Socket
- 14mm Socket
- 17mm Socket
- T-50 Torx Bit Socket
- New Alternator
Some tools will be needed, mainly 12mm, 14mm, and 17mm sockets or wenches.
A T-50 Torx Bit socket will be needed to remove the top bolt on the tensioner.
Example T-50 Torx Bit Socket on Amazon
Crescent 3/8″ Drive Torx Bit Socket T-50 – CDTS9N
A new alternator will also be needed, which can be bought at an auto-parts store or online on Amazon or eBay.
Example T-50 Honda Civic Alternator on Amazon
New Alternator Replacement For Acura ILX 2.0L 2013-2015, Honda Civic 1.8L 2012-2015, HR-V 1.8L R18Z9 2016-2018 31100R1AA01, 31100R1AA010M2, 31100R1AA01RM, AHGA81, A005TJ0191, AMT0278, 40048108
How To Replace a Honda Civic Alternator (2012-2018)
- Disconnect the positive battery terminal.

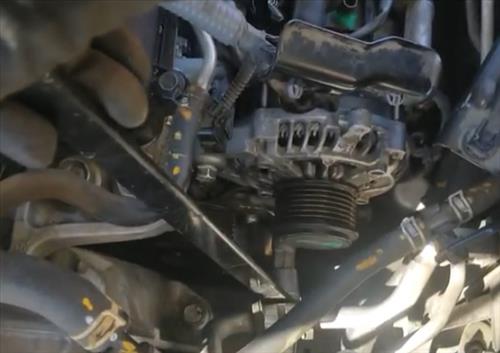

- Remove the electrical connections on the alternator.
- Using a 17mm socket pull on the belt tensioner and remove the belt.
- Using a T-50 Torx Bit remove the first bolt on the belt tensioner.
- Using a 12mm socket remove the second bolt on the belt tensioner and remove it.
- Remove the bottom 14mm bolt holding the alternator.
- Remove the top 14mm bolt holding the alternator.
- The alternator can now be removed, which often requires a bit of prying and pulling.
- Once the old alternator is out, installing the new one is in the reverse order.
Removing an alternator on a 2012-2018 Honda Civic is a straightforward job.
The most difficult part is the tight space that has to be worked in.
The alternator is removed from the top of the engine, so no need to crawl around underneath.
The belt tensioner will need to be removed to unbolt the bottom bolt on the alternator.
To remove the tensioner, be sure to have a Torx T-50 bit socket ready.
