7 Causes When a Car or Truck Keeps Burning Out Alternators

By | June 19, 2024

Causes When a Car or Truck Keeps Burning Out Alternators
If you have a vehicle and the alternator keeps gin bad, failing, or burning out, it can be caused by several things.

While alternators can fail, they should not fail constantly, and more than two failures usually indicate there is an issue.

How Often Should an Alternator Fail?

How Often Does an Alternator Fail
Most alternators are built to last 90,000 to 120,000 miles, with many lasting much longer.

An alternator can have a defect and fail sooner, but its replacement should last at least 90,000 miles or more.

If an alternator has failed more than twice within 20,000 miles, there is very likely a problem that will need to be fixed.

What is the Average Lifespan of an Alternator?

The average lifespan of an alternator is between 90,000 to 120,000 miles.

Many can last much longer, but they should last at least 90,000 miles.

7 Causes When a Car Keeps Burning Out Alternators

  1. Bad Battery
  2. Bad Battery
    A bad battery that has an issue charging properly can cause a strain on the alternator.

    This can shorten the lifespan of the alternator since it is working much harder than it was designed for.

    For example, if one of the battery cells has gone bad, it may be putting a load on the charging system.

    A battery load test will often show if the battery needs to be replaced.

  3. Failing Voltage Regulator
  4. Failing Voltage Regulator
    A voltage regulator that fails can cause issues and an alternator to fail.

    Often when a regulator fails, the voltage output will be very high or very low.

    A multi-meter can read the voltage output at the battery terminals to see if the voltage is unstable.

    Voltage regulators can be built into the alternator or separated depending on the vehicle.

    When they are separate, the regulator can be tested or replaced.

    If it is built into the alternator, it is usually best to replace the entire unit.

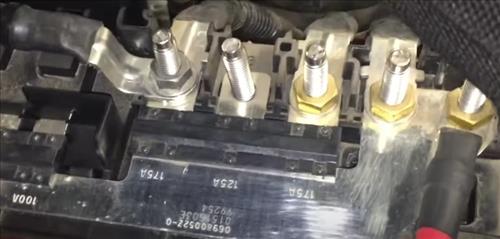

  5. Wiring Issues
  6. Wiring Issues
    A wiring issue can cause a problem and shorten the lifespan of the alternator.

    If the main wires going to the battery have a bad connection, they may be causing an issue.

    The wiring connections can all be checked to see if they are making good contact and are not corroded.

  7. Overload From Added Electronics
  8. If electronics have been added to the vehicle, it may be overloading the alternator and causing a failure.

    The amp draw of the added electronics can be checked to see if the charging system can handle the load.

    If the amp draw is too high, a larger capacity alternator can often be added to a vehicle to meet the power demand.

  9. Intermittent Short
  10. Intermittent Short
    A short will cause an issue and may not be constant but a loose wire that only shorts out intermittently.

    When a short is constant, it is much easier to find and solve the issue.

    An intermittent short is more of a problem, and since it only happens occasionally may be overlooked.

    Often an intermittent short is the last thing looked for after everything else has been tested.

  11. Fluid From Engine Blowing on Alternator
  12. Fluid From Engine Blowing on Alternator
    If the engine has an issue such as overheating, it may be blowing fluid onto the alternator, causing it to fail.

    While alternators are built to withstand some fluid, excessive amounts may damage components such as the bearings and brushes.

  13. Low Quality
  14. Most alternator manufacturers have good quality standards but there can be some low quality units.

    If you are using low-cost units from eBay, it may be time to get a better name-brand unit.

Why Does My Car Keep Burning Up Alternators?

When a vehicle alternator keeps burning up, it usually is caused by a bad connection or high amp load.

There can be several components and things to check, such as wiring, corroded terminals, bad battery, and more.

Summary
If you have a car or truck and the alternator keeps going bad, there can be several causes.

The first thing to do is an alternator output test to be sure it is working correctly, and the voltage regulator has not gone bad.

The battery can also be tested to see if it is failing.

Wiring connections should also be checked since any bad connections will cause a problem.

If you have added electronic devices to the vehicle, it would be a good idea to see the rated amp draw of each device to be sure they are not overloading the charging system.

Other possible causes include low-cost units and possibly fluid splashing into the components.

Have you had issues with an alternator that keeps burning up and going bad? Let us know your thoughts below.

One thought on “7 Causes When a Car or Truck Keeps Burning Out Alternators

  1. Lori Lynn Valker

    I have a 2004 kia sportage and i was having problems with my instrument panel going dead, which made it hard to get any error codes but i also had problems with my alternator and battery I check fuses but as soon as i would replace it would blow within a couple of minutes replacing it, this would cause my car to barely run and at night if i had to put the lights on forget it i wouldn’t be able to get down a block I replaced the alternator and battery i even replace the wire harness that goes to the ignition thinking maybe there was a bad wire being pinched. my car has been parked for 2 months because i have replaced the alternator 5 times and the battery 3 times all within the warranty period and went through a hand full of fuses for the fuse box under the dash. whatever short i have it kills the battery if i leave it hooked up so i haven’t put the replacement back in, before i had to replace the battery it would take a jump but slowly it wouldn’t do that either. i could use some advice the only thing i didn’t try was placing the ground or any relays

    Reply
