What is a P0443 OBDII Engine Code?

By | September 22, 2022

What is a P0443 Code
If your engine light comes on and using an OBDII scan tool, you get a P0443 code; it can be diagnosed and fixed in several steps.

A P0443 OBDII engine code means the computer sees a malfunction with the EVAP (Evaporative Emission) Control System Purge Valve Circuit.

The EVAP system sends fumes from the gas tank to go to the engine rather than vented into the atmosphere.

A vehicle computer (ECM) controls the opening of the purge valve, allowing gasses from the tank to enter the engine.

The ECM monitors the ground circuit for faults which the ECM sees when a high voltage on the ground circuit.

What Is a P0443 Code?

A P0443 Code OBDII code is an “EVAP Purge Control Valve Circuit Malfunction.”

What it means is the computer is not able to communicate with the purge solenoid. This can happen for many reasons, such as a wire is bad, or there is a connection issue, or the solenoid itself can be bad.

P0443 Code Symptoms

  • Engine Light On
  • Not Able to Pass a Smog Test

What Causes a P0443 Code?

  • Bad Gas Cap
  • Fuse
  • Purge Valve Wiring
  • Bad Purge Valve

Can I Drive with a P0443 Code?

Yes, most vehicles can drive with a P0443 code, with only a few having problems.

While the car or truck is driveable, it is recommended to get it fixed as soon as possible not to cause further problems.

How To Diagnose a P0443 Code?

Use Goggle to find the location of the purge valve on your vehicle, which is usually located on the intake manifold and will have a vacuum line attached.
How To Diagnose a P0443 Code

Check all the wires and connections on the purge valve.
How To Diagnose a P0443 Code Wiring

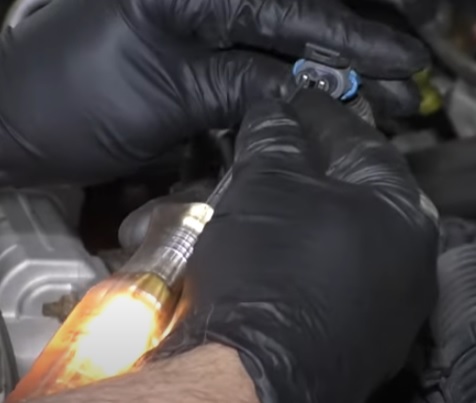

Use a test light to check the purge valve is getting power on the positive side.
How To Diagnose a P0443 Code Wiring 2
The negative side is controlled by the ECM and will usually not get power unless the ECM activates it.

How To Fix a P0443 Code

  • Be sure the gas cap is on the vehicle and screwed on tightly.
  • Check and test all your fuses and replace any bad ones if found.
  • Check all the wiring going to the purge valve and test for voltage on the positive wire.
  • The ground wire usually only has power when the computer sends a signal. This can vary will vehicle’s.
  • If all tests are good, the purge valve is likely bad and needs to be replaced.

Cost To Diagnose and Repair a P0443 Code

The cost will vary widely on location and make/model of the car or truck.

A P0443 Code is usually not an expensive repair, with the most expensive part being the purge solenoid.

A purge solenoid cost can be looked up online and will depend on the make and model of the vehicle.

If there is a wiring issue, this can sometimes become involved, which, while rare, can run up the hours for the repair.

How Serious is the P0443 Code?

A P0443 code is not hugely serious unless the car is running badly, which is usually not the case.

The engine light will be on, and the vehicle will not be able to pass a smog test.

The car or truck should be driveable until it can be repaired.
