How to Replace Headlight Bulb 2003-2008 Toyota Corolla

By | November 8, 2022

How to Replace headlight bulb 2003-2008 Toyota Corrolla
Replacing a bad headlight bulb on a 2003-2008 Toyota Corolla is a straightforward DIY task.

Of course, if in doubt, take your car to a professional.

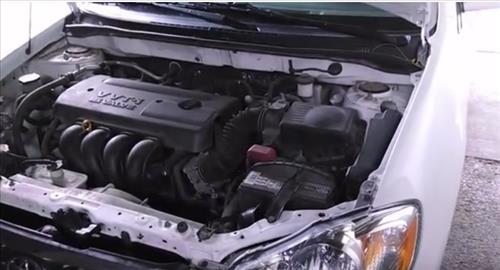

How to Replace headlight bulb 2003-2008 Toyota Corrolla step 1

There are two bulbs located at the back of the headlight assembly.
How to Replace headlight bulb 2003-2008 Toyota Corrolla Step Overview
The outside bulb is for Low Beams, and the inside bulb is for High Beams.

2003-2008 Toyota Corolla Headlight Bulb Types

  • 9005 Hi-beam
  • 9006 Low-beam

A 2003-2008 Toyota Corolla uses a 9005 for hi-beam and a 9006 for low-beam.

Replacement bulbs can be bought online or at a local auto parts store.

Example 9006 Low-Beam Headlight Bulb on Amazon
Philips 9006 Vision Upgrade Headlight Bulb with up to 30% More Vision, 2 Pack

Example 9005 High-Beam Headlight Bulb on Amazon
SYLVANIA 9005 SilverStar High Performance Halogen Headlight Bulb

When replacing any headlight bulb, be sure not to touch the bulb itself with your fingers, as oil from your hands can create a hot spot that shortens the life of the bulb.

How to Replace the Headlight Bulb on a 2003-2008 Toyota Corolla

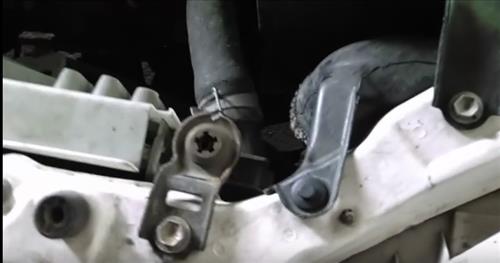

  1. On the driver’s side, you will need to remove a plastic clip. The passenger side is easier as it does not have it.
  2. How to Replace headlight bulb 2003-2008 Toyota Corrolla step 2

  3. Remove the clip using a screwdriver underneath it to pry it up.
  4. How to Replace headlight bulb 2003-2008 Toyota Corrolla step 3

  5. Pull it out and put it to the side.
  6. How to Replace headlight bulb 2003-2008 Toyota Corrolla step 4
    How to Replace headlight bulb 2003-2008 Toyota Corrolla step 5

  7. Pull the plastic piece that is connected to the air filter to the side; that way, you have better access to reach out the bulb.
  8. How to Replace headlight bulb 2003-2008 Toyota Corrolla Step 1111

  9. Reach in behind the bulb and turn it counterclockwise to remove it.
  10. How to Replace headlight bulb 2003-2008 Toyota Corrolla step 6

  11. Unplug the connector.
  12. How to Replace headlight bulb 2003-2008 Toyota Corrolla step 7

  13. Install a new bulb and plug it back in the connector.
  14. How to Replace headlight bulb 2003-2008 Toyota Corrolla step 8

  15. Putting it back together is the same as removing it, only in reverse.
  16. How to Replace headlight bulb 2003-2008 Toyota Corrolla step 10

  17. After replacing the headlight bulb, the plastic clip needs to go back in place.
  18. How to Replace headlight bulb 2003-2008 Toyota Corrolla step 11

    How to Replace headlight bulb 2003-2008 Toyota Corrolla step 12

  19. After putting everything back together, test the lights, which should now work.
  20. How to Replace headlight bulb 2003-2008 Toyota Corrolla Step 8888
