Toyota Lexus 4.6L (1UR-FE) V8 Engine Firing Order, Cylinder Location, Bank-1 and Bank-2

The Toyota and Lexus 4.6L (1UR-FE) V8 is a popular engine and it was used from 2005 to 2023.

The coil and injector numbering is the same as the cylinder numbering. Coil 1 and injector 1 are both cylinder 1.

Vehicles That Have the Toyota Lexus 4.6L (1UR-FE) Engine Option

• 2005-2011 Lexus GS 460 (Middle East)
• 2006-2017 Lexus LS 460 / LS 460 L (Middle East)
• 2009-2023 Lexus GX 460
• 2010-2012 Toyota Sequoia
• 2010-2019 Toyota Tundra
• 2012-2021 Toyota Land Cruiser (200 Series, international markets)

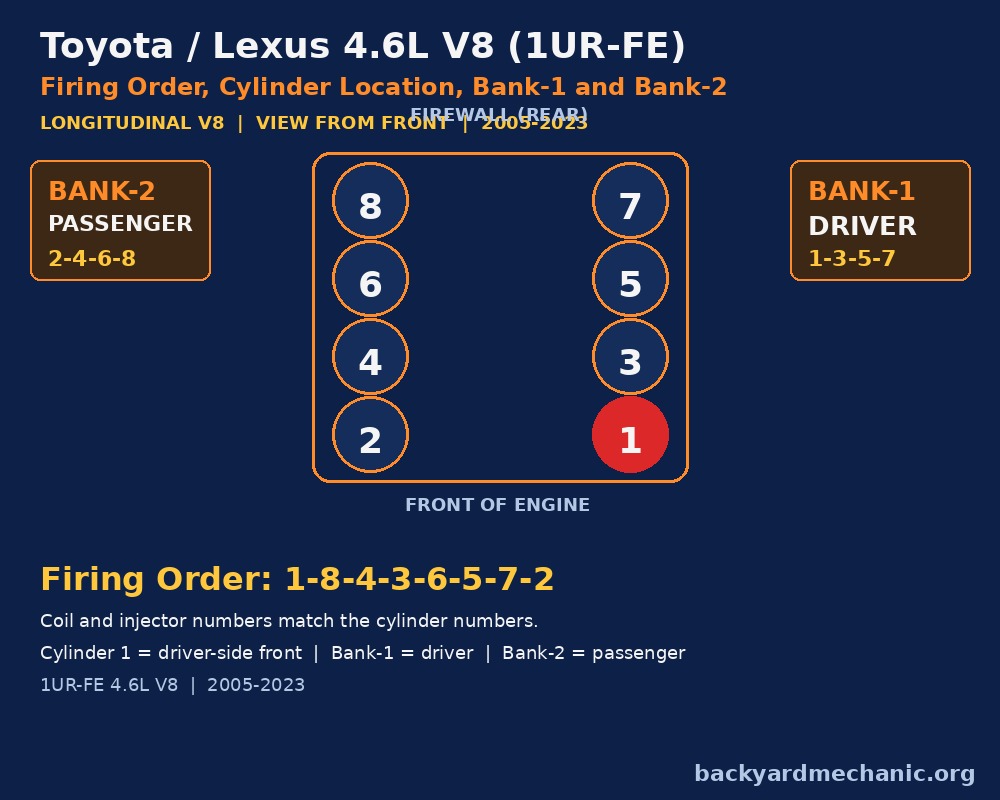

Toyota Lexus 4.6L (1UR-FE) Engine Firing Order

Firing Order: 1-8-4-3-6-5-7-2

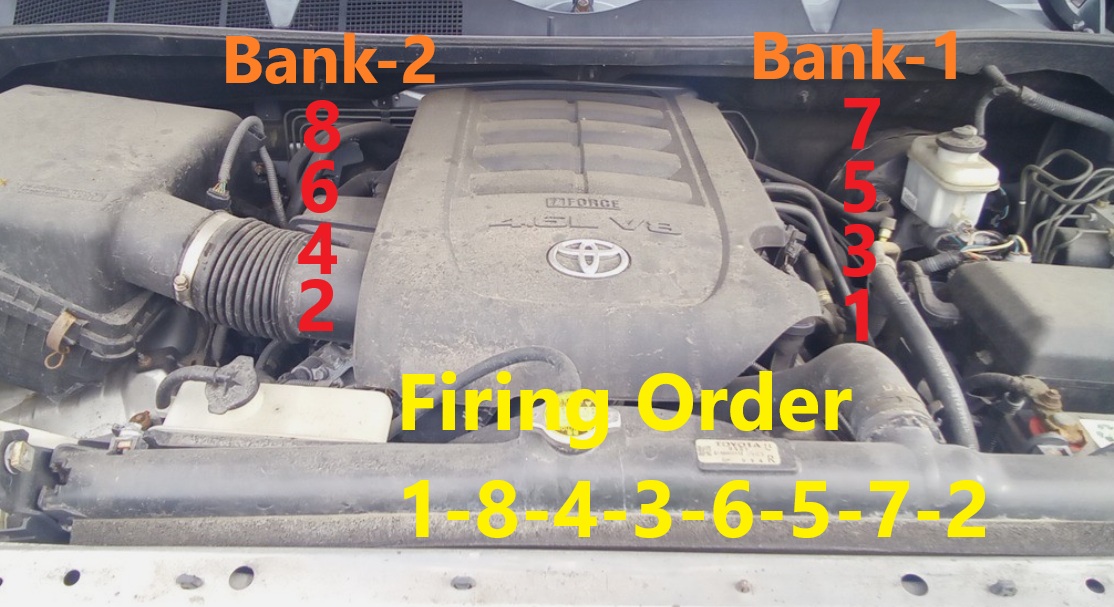

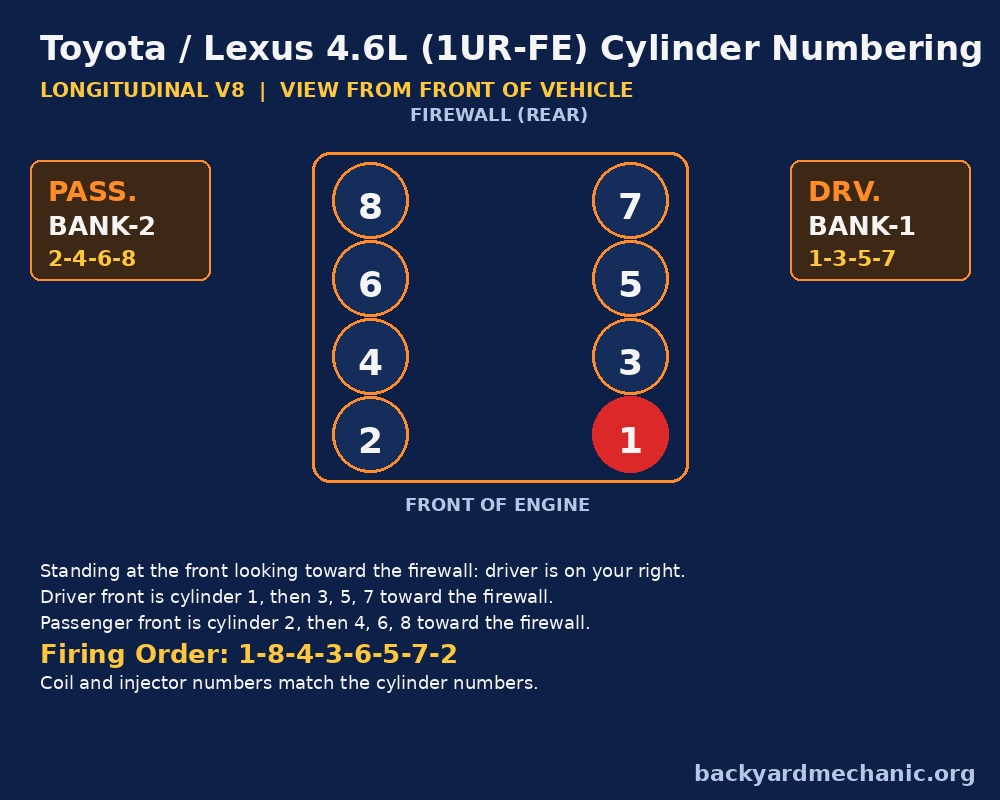

Toyota Lexus 4.6L (1UR-FE) Cylinder Numbering

(USA) Drivers Side of Engine Cylinder Location (Bank-1)

Firewall

• 7
• 5
• 3
• 1

Front

(USA) Passenger Side of Engine Cylinder Location (Bank-2)

Firewall

• 8
• 6
• 4
• 2

Front

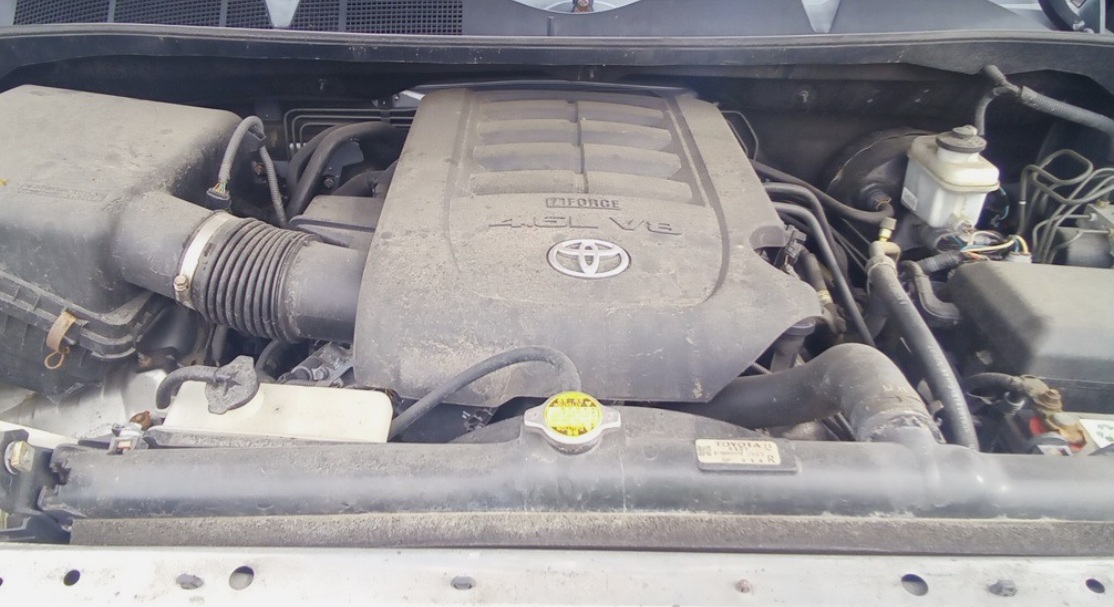

Open the hood and start at the front of the engine. Driver side is 1, 3, 5, then 7 toward the firewall. Passenger side is 2, 4, 6, then 8 toward the firewall. Bank-1 is the driver side. Bank-2 is the passenger side.

To find bank one on any engine, locate cylinder number one. That side is bank one. The other side is bank two.
