Honda 1.5L Engine Firing Order, Cylinder Location, Bank-1 and Bank-2

The Honda 1.5L 4-cylinder covers popular family codes including the D15, L15A, L15B, and L15B7 Earth Dreams turbo. It was a popular engine and it shows up on models from the early 1980s into current model years.

The coil and injector numbering is the same as the cylinder numbering. Coil 1 and injector 1 are both cylinder 1. On older Honda 1.5L engines with a distributor, the distributor rotates clockwise.

Cylinder number 1 is always at the front of the engine on the pulley and belt side. Cylinders 2, 3, and 4 follow toward the transmission.

Honda changed the 1.5L mounting orientation on newer years, so cylinder 1 can sit on the USA driver side or the USA passenger side depending on the model.

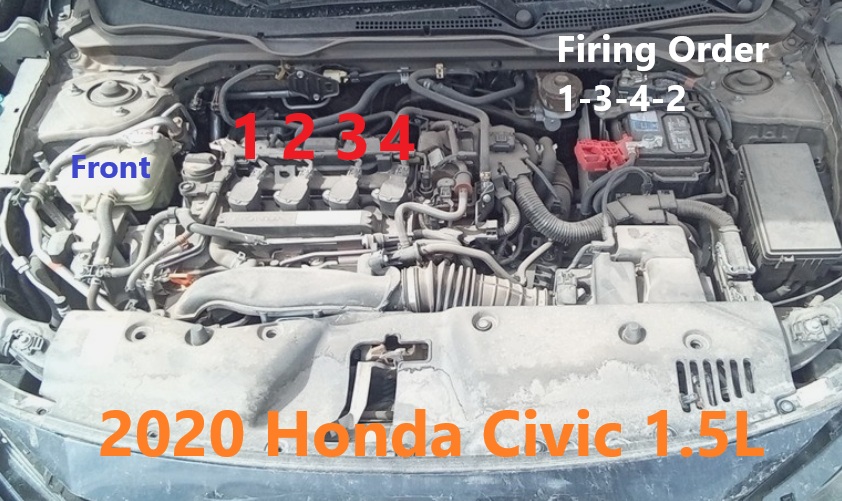

Newer Honda 1.5L engines

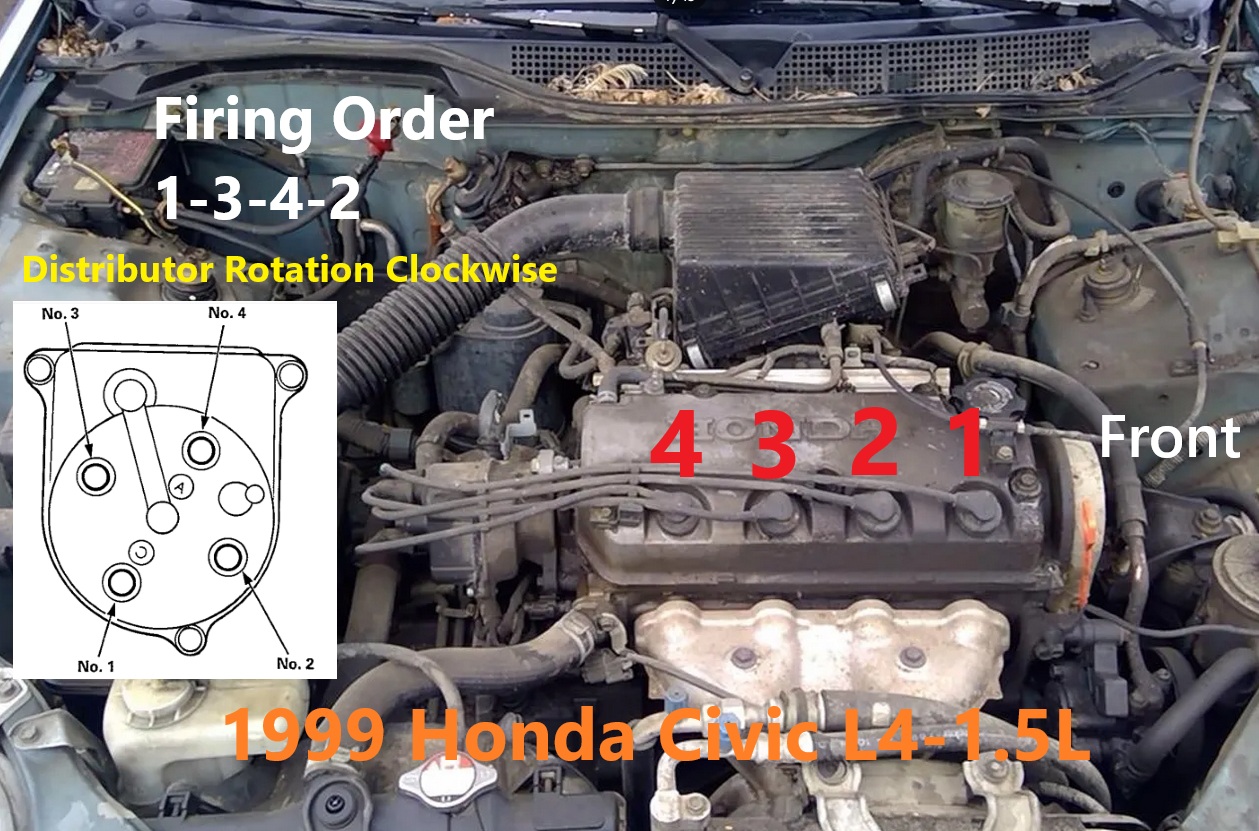

Older Honda 1.5L engines

Vehicles That Have the Honda 1.5L (D15 / L15A / L15B / L15B7) Engine Option

• 1981-present Honda City
• 1983-present Honda Civic
• 1984-1991 Honda CRX
• 1984-1991 Honda Civic Wagon
• 1984-1991 Honda Civic Shuttle
• 1985-1989 Honda Integra
• 1988-1994 Honda Concerto
• 1989-2000 Honda Ballade
• 1991-2005 Honda Civic Ferio
• 1992-1998 Honda CR-X del Sol
• 1992-2000 Honda Domani
• 1993-1997 Honda Del Sol
• 1996-2006 Honda Partner
• 1996-2002 Honda Orthia
• 1996-2001 Honda Logo
• 1998-2002 Honda Capa
• 2000-2006 Honda Stream
• 2001-present Honda Fit
• 2001-present Honda Jazz
• 2013-present Honda HR-V
• 2013-present Honda Vezel
• 2013-2020 Honda Jade
• 2014-present Honda Mobilio
• 2015-present Honda Shuttle
• 2016-present Honda Civic 1.5T
• 2016-present Honda Freed
• 2016-present Honda BR-V
• 2017-present Honda CR-V
• 2017-present Honda Civic Si
• 2018-2022 Honda Accord 1.5T
• 2022-present Honda WR-V
• 2022-present Honda ZR-V
• 2023-present Acura Integra
• 2023-present Honda Elevate

Honda 1.5L (D15 / L15A / L15B / L15B7) Engine Firing Order

Firing Order: 1-3-4-2

Honda 1.5L (D15 / L15A / L15B / L15B7) Cylinder Numbering

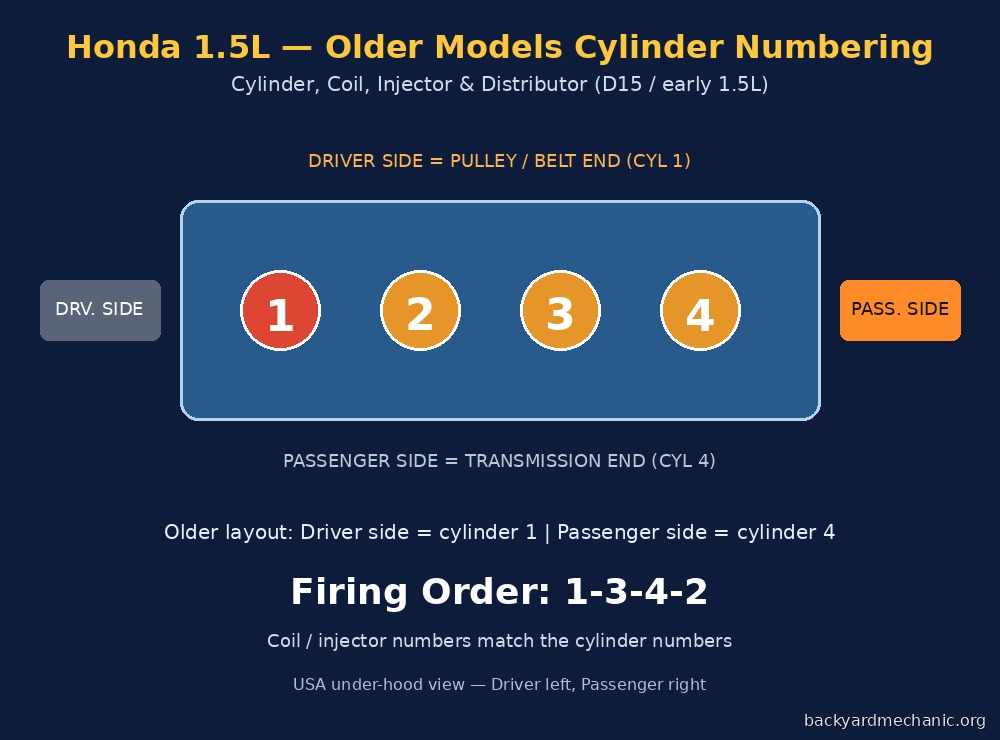

Older Honda 1.5L engines (D15 / early SOHC) put cylinder 1 on the USA driver side (pulley and belt end).

Driver Side to Passenger Side (Older)

• 1
• 2
• 3
• 4

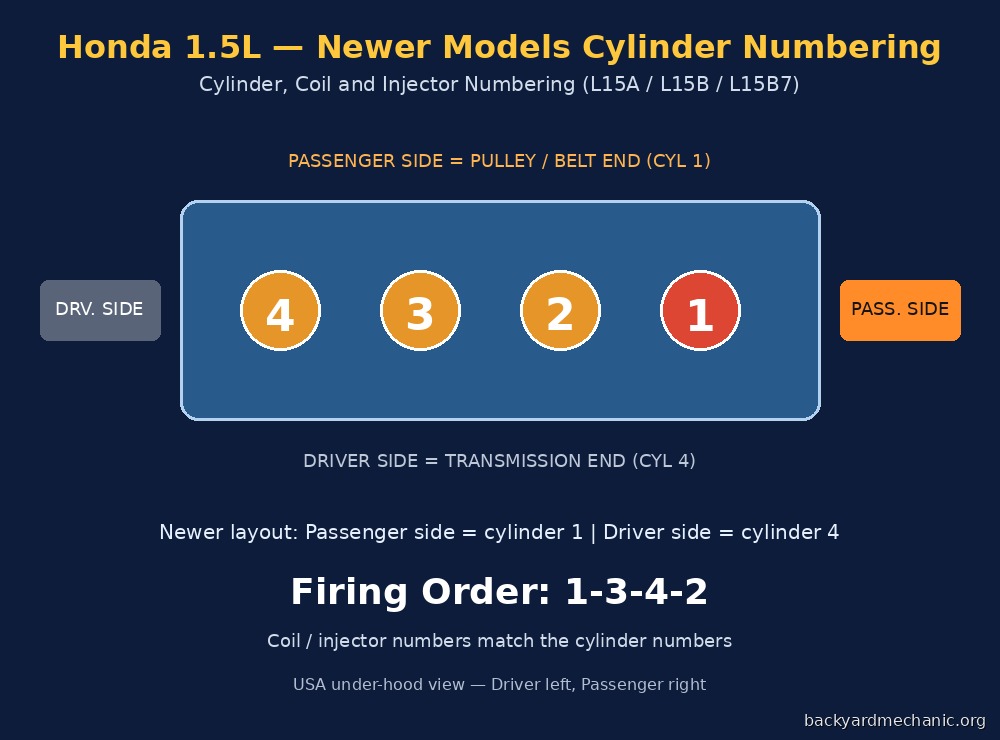

Newer Honda 1.5L engines (L15B / L15B7) put cylinder 1 on the USA passenger side (pulley and belt end).

Passenger Side to Driver Side (Newer)

• 1
• 2
• 3
• 4

No matter which orientation you have, start at the pulley and belt end for cylinder 1, then count 2, 3, and 4 toward the transmission. The coils and injectors match the cylinder numbers.
