How To Bypass Ford Fuel Pump Driver Module

By | April 10, 2022

How To Ford Fuel Pump Driver Module Bypass
If you have a Ford that uses a fuel pump driver module, it can be bypassed for testing.

This can be a good way to test if the module is bad or possibly get the vehicle home in an emergency.

I recently ran into this problem with a 2008 Ford F-150 that had a fuel issue.

The code on an OBDII scan tool was a P1237 Fuel Pump Secondary Circuit Malfunction.

The fuel pump driver module is located at the rear of the vehicle.
Ford Fuel Pump Driver Module Location

Before bypassing the module be sure it is getting 12-volts DC or there is another problem.
How To Bypass Ford Fuel Pump Driver Module
There is an inertia switch on the passenger side of the 2008 Ford F-150 that controls the fuel pump along with relays in the fuse box.

Do the Following at Your Own Risk. While I did not have any Issues, I Can Not Be Responsible If Something Goes Wrong.

How To Bypass 2008 Ford F-150 Fuel Pump Driver Module

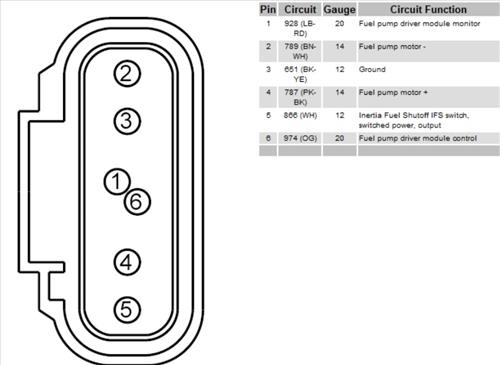

Here is a wiring diagram of a 2008 Ford F-150 Driver Module pins.
How To Bypass Ford Fuel Pump Driver Module Diagram

  • Pin 1: Fuel Pump Driver Module Monitor
  • Pin 2: Fuel Pump Motor
  • Pin 3: Ground
  • Pin 4 Fuel Pump Motor +
  • Pin 5: Inertia Fuel Shutoff IFS Switch. Switched Power Output
  • Pin 6: Fuel Pump Driver Module Control

The pins are not numbered in a line, so it can be a bit confusing but below is how it is wired.

Be sure to see a diagram for the make, year, and model of your Ford, as there may be variations.

The outer wires of the plug are 12-volts from the battery (white) and module ground (brown).
How To Ford Fuel Pump Driver Module Bypass Wiring 1

The black/yellow wire is fuel pump ground, while the pink/black wire is 12 volts for the fuel pump.
How To Ford Fuel Pump Driver Module Bypass Wiring 2

Jumper the grounds together and the 12-volts to the 12-volt for the fuel pump will bypass the module.
How To Ford Fuel Pump Driver Module Bypass Jumpers
Basically, the outer left pins and outer right pin are jumpered together.

Summary
Jumpering a 2008 Ford F-150 fuel pump driver module is straightforward by sending 12-volt and ground to the fuel pump.

First, Google a wiring diagram for your Ford to be sure the wiring is the same.

The jumper is likely the same across many types, but it is best to check a diagram to be sure.

If the fuel pump is not working, be sure to check for 12-volts on the white wire, or the jumper will not work as the module may be good.

Common Ford OBDII codes for a bad module include P1237 Fuel Pump Secondary Circuit Malfunction and PO191 Fuel Rail Sensor.

Have you had to wire a jumper for a Ford fuel pump driver module? Let us know your thoughts below.
