The Ford 5.4L V8 is a widely used engine found in many Ford trucks and SUVs from the late 1990s through the 2010s. The Triton 5.4L was used across multiple vehicles including the F-Series trucks and Expeditions, with both 2-valve and 3-valve Triton versions.
Vehicles That Have the Ford 5.4L V8 Engine Option
- 1997–2014 Ford F-150:
- 1997–2014 Ford Expedition:
- 2000–2005 Ford Excursion:

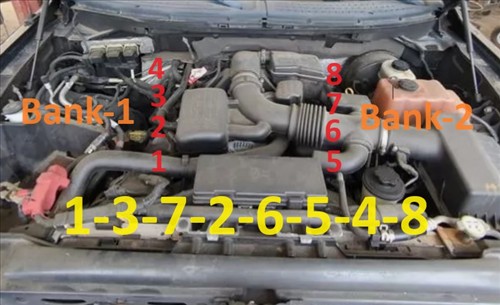

Firing Order: 1-3-7-2-6-5-4-8
Ford 5.4L V8 Engine Bank-1 and Bank-2 Location
Passenger Side of Engine
- Bank-1
Driver Side of Engine
- Bank-2
Ford 5.4L V8 Engine Cylinder Location Longitudinal Mount
Passenger Side of Engine
- 4
- 3
- 2
- 1
Driver Side of Engine
- 8
- 7
- 6
- 5
On any V6, V8, or V10 engine, the side with cylinder #1 is always Bank-1, and the opposite side is Bank-2.
