Ford 3.5L V6 Engine Firing Order, Cylinder Location, Bank-1 and Bank-2

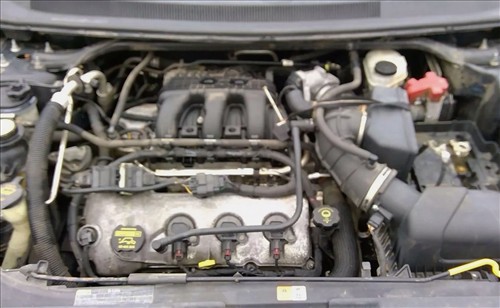

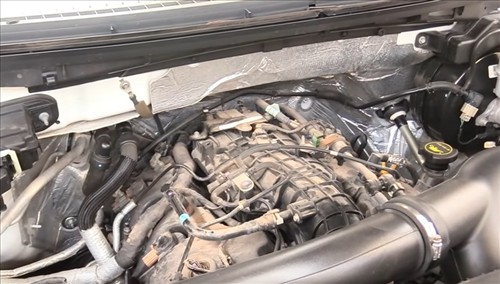

The Ford 3.5L V6 is a popular engine used in many Ford vehicles including trucks and SUVs. This engine can be mounted either sideways (transverse) or straight (longitudinal) depending on the vehicle, with the F-150 being a common example that uses the straight mounted configuration.
Vehicles That Have the Ford 3.5L V6 Engine Option
- 2007: Ford Edge, Lincoln MKX, Lincoln MKZ, Mazda CX-9
- 2008: Ford Taurus, Ford Taurus X, Mercury Sable
- 2009: Ford Flex
- 2010: Ford Taurus SHO, Ford Fusion Sport, Lincoln MKS, Lincoln MKT
- 2011: Ford F-150, Ford Explorer
- 2013: Ford Explorer Sport
- 2014: Ford Police Interceptor Utility & Sedan
- 2015: Ford Expedition, Lincoln Navigator, Ford Transit
- 2017: Ford GT, Ford F-150 Raptor
- 2021: Ford F-150 PowerBoost (Hybrid)

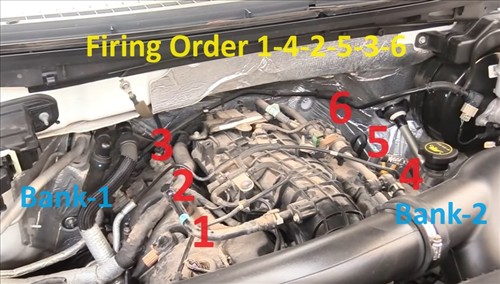

Ford 3.5L V6 Engine Firing Order, Cylinder Location, Bank-1 and Bank-2 Mounted Straight (longitudinal)
Firing Order: 1-4-2-5-3-6

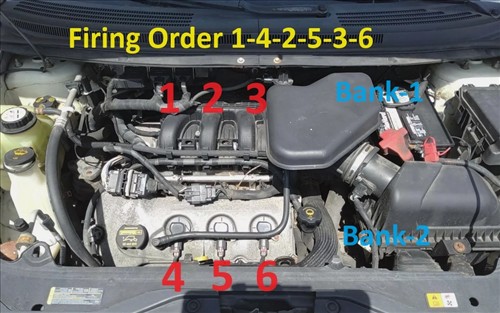

Ford 3.5L V6 Engine Firing Order, Cylinder Location, Bank-1 and Bank-2 Mounted Sideways (transverse)
Firing Order: 1-4-2-5-3-6
Ford 3.5L V6 Engine Bank-1 and Bank-2 Location Straight (longitudinal)
Passenger Side of Engine
- Bank-1
Driver Side of Engine
- Bank-2
Ford 3.5L V6 Engine Cylinder Location Mounted Straight (longitudinal)
Passenger Side Front of engine to Back
- 3
- 2
- 1
Driver Side Front of engine to Back
- 6
- 5
- 4
Ford 3.5L V6 Engine Bank-1 and Bank-2 Location Mounted Sideways (transverse)
Firewall Side of Engine
- Bank-1
Forward Side of Engine
- Bank-2
Ford 3.5L V6 Engine Bank-1 and Bank-2 Location Mounted Sideways (transverse)
Firewall Side of Engine
- 1
- 2
- 3
Forward Side of Engine
- 4
- 5
- 6
To find bank one on any engine, just locate cylinder number one and that side will be bank one, with the opposite side being bank two.
