The Honda 3.5L V6 is a widely used engine in many Honda and Acura vehicles from 1996-2025. It was first introduced in 1996, and after several upgrades and variations, it is currently still being used inside the Honda Pilot.
Vehicles That Have the 1996-2025 Honda 3.5L V6 Engine Option
- 1996–2025 Honda Pilot: Uses the 3.5L V6
- 1998–2025 Honda Odyssey: Uses the 3.5L V6
- 2003–2025 Honda Accord: Uses the 3.5L V6 (select trims)
- 2009–2025 Honda Ridgeline: Uses the 3.5L V6
- 2013–2025 Acura MDX: Uses the 3.5L V6
- 2014–2025 Acura TLX: Uses the 3.5L V6 (select trims)
- 2016–2025 Acura RDX: Uses the 3.5L V6
Firing Order: 1-4-2-5-3-6

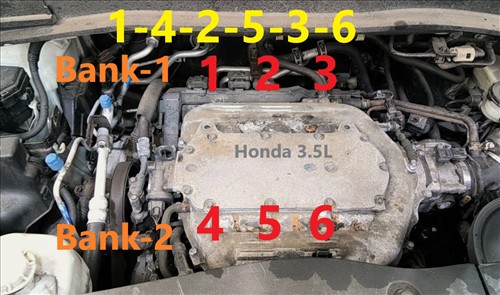

1996-2025 Honda 3.5L V6 Engine Bank-1 and Bank-2 Location
Firewall Side of Engine
- Bank-1
Forward Side of Engine
- Bank-2

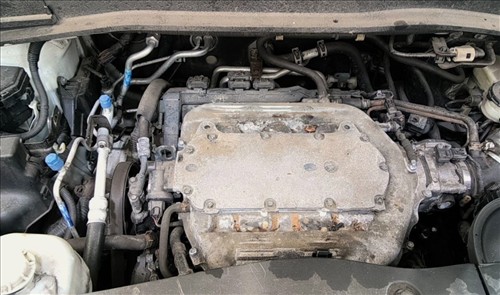

1996-2025 Honda 3.5L V6 Engine Cylinder Location Transverse Mount
Firewall Side of Engine
- 1
- 2
- 3
Forward Side of Engine
- 4
- 5
- 6
