- P0170 Code: Indicates a Fuel Trim Malfunction (Bank 1), the computer is having issues maintaining the optimal air-fuel mixture.
- Common Symptoms: Check Engine Light, rough idling, poor acceleration, misfires, reduced fuel economy, black smoke, or fuel odor.
- Main Causes: Vacuum leaks, faulty MAF or O2 sensors, fuel delivery issues, exhaust leaks, or computer problems.
- Diagnosis Steps: Check for additional codes, inspect vacuum lines, test MAF and O2 sensors, verify fuel pressure, and review fuel trim data.
- Fixes: Repair leaks, clean or replace sensors, test injectors, test fuel system.
Understanding and Fixing a P0170 Code: Fuel Trim Malfunction
If you’ve plugged a diagnostic scanner into your vehicle and pulled a P0170 code, you’re dealing with a Fuel Trim Malfunction (Bank 1). This code indicates that your engine’s computer (ECU/ECM/PCM) is struggling to maintain the ideal air-fuel mixture for combustion, which can lead to poor performance, reduced fuel efficiency, or even engine damage if left unresolved. In this blog post, we’ll break down what a P0170 code means, its common causes, symptoms, and practical steps to fix it.
What is a P0170 Code?
The P0170 code is a generic OBD-II trouble code that signals an issue with the fuel trim system on Bank 1 of the engine. Fuel trim refers to the adjustments the ECU makes to the air-fuel mixture to ensure optimal combustion. The ECU uses data from sensors like the oxygen (O2) sensor and mass airflow (MAF) sensor to fine-tune this mixture.
When the fuel trim values stray too far from the ideal range (either too rich or too lean), the ECU triggers the P0170 code. Bank 1 typically refers to the side of the engine with cylinder #1 in V-shaped or boxer engines, though in inline engines, there’s usually only one bank.
Symptoms of a P0170 Code
A P0170 code can manifest in various ways, depending on whether the mixture is too rich (too much fuel) or too lean (too much air). Common symptoms include:
- Check Engine Light: The most obvious sign, triggered by the ECU.
- Rough Idling: The engine may shake or vibrate at idle.
- Poor Acceleration: Hesitation or sluggish response when pressing the gas pedal.
- Misfires: Incomplete combustion can cause the engine to stumble or misfire.
- Reduced Fuel Economy: An improper air-fuel ratio wastes fuel.
- Black Smoke (Rich Condition): Excess fuel may produce dark exhaust.
- Strong Fuel Odor: A rich mixture can cause a noticeable gasoline smell.
In some cases, you might not notice drivability issues, but the code will still appear during a diagnostic scan.
Common Causes of a P0170 Code
The P0170 code can stem from a variety of issues affecting the fuel or air delivery systems. Here are the most common culprits:
- Vacuum Leaks: Cracked vacuum hoses, loose intake manifold gaskets, or faulty PCV valves can introduce unmetered air, causing a lean condition.
- Faulty Mass Airflow (MAF) Sensor: A dirty or malfunctioning MAF sensor can misreport airflow, leading to incorrect fuel delivery.
- Clogged or Leaking Fuel Injectors: Dirty injectors may restrict fuel flow, while leaking ones can cause a rich condition.
- Faulty Oxygen (O2) Sensor: A failing O2 sensor can send incorrect data to the ECU, disrupting fuel trim adjustments.
- Fuel Delivery Issues: A weak fuel pump, clogged fuel filter, or failing fuel pressure regulator can starve the engine of fuel.

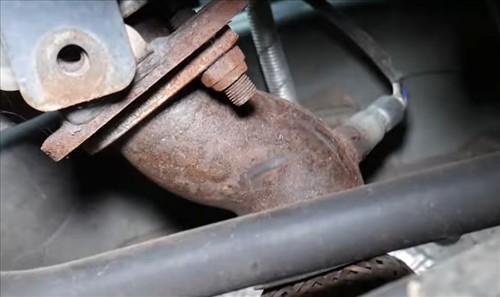

- Exhaust Leaks: Leaks before the O2 sensor can skew readings, mimicking a fuel trim issue.
- Faulty ECU or Software: Though rare, a glitch in the ECU or outdated firmware can trigger erroneous codes.
How to Diagnose a P0170 Code
Before diving into repairs, you’ll need to pinpoint the root cause. Here’s a step-by-step diagnostic approach:
- Scan for Additional Codes: Use an OBD-II scanner to check for related codes (e.g., P0171 for lean or P0172 for rich conditions). These can provide clues about the issue.
- Inspect for Vacuum Leaks:
- Visually check vacuum hoses, intake manifold gaskets, and throttle body seals for cracks or looseness.
- Use a smoke machine or spray carb cleaner around suspected areas while the engine is running. If the idle changes, you’ve found a leak.
- Check the MAF Sensor:
- Inspect the MAF sensor for dirt or damage. Clean it with MAF-specific cleaner if needed.
- Use a scan tool to monitor MAF readings and compare them to manufacturer specs.
- Test the O2 Sensor:
- Monitor O2 sensor voltage with a scan tool. It should fluctuate rapidly between 0.1V and 0.9V.
- A sluggish or stuck sensor may need replacement.
- Inspect Fuel Delivery:
- Check fuel pressure using a gauge to ensure it meets manufacturer specs.
- Inspect the fuel filter and pump for blockages or weakness.
- Examine the Exhaust System:
- Look for leaks or damage in the exhaust manifold or pipes before the O2 sensor.
- Review Fuel Trim Data:
- Use a scan tool to monitor short-term and long-term fuel trim values. Positive values indicate the ECU is adding fuel (lean condition), while negative values suggest it’s reducing fuel (rich condition).
How to Fix a P0170 Code
Once you’ve identified the cause, here’s how to address it:
- Repair Vacuum Leaks:
- Replace damaged vacuum hoses or gaskets.
- Tighten or replace loose components like the intake manifold or throttle body.
- Clean or Replace the MAF Sensor:
- Spray the sensor with MAF cleaner and let it dry. If cleaning doesn’t help, replace it.
- Replace Faulty O2 Sensors:
- Swap out any O2 sensors that fail to respond correctly. Use OEM or high-quality aftermarket parts.
- Service Fuel Injectors:
- Clean clogged injectors with a professional fuel system cleaner or replace faulty ones.
- Address Fuel Delivery Problems:
- Replace a clogged fuel filter or weak fuel pump.
- Install a new fuel pressure regulator if it’s malfunctioning.
- Fix Exhaust Leaks:
- Patch or replace damaged exhaust components. Ensure proper sealing.
- Update or Replace the ECU:
- If all else fails, consult a professional to check for ECU issues. Reflashing or replacing the ECU is a last resort.
After making repairs, clear the code with your OBD-II scanner and drive the vehicle to see if the code returns. Monitor fuel trim data to confirm the issue is resolved.
