How To Replace the Headlight Bulbs on a 2000-2004 Volkswagen Passat

Replacing the headlight bulbs on a 2000-2004 VW Passat is not a difficult job and falls into the DIY category.

The process is simple enough by pulling out the bad bulb and inserting a new one.
How To Install Headlight Bulbs in Volkswagen Passat B5.5 111

The difficulty will be how hard the old bulb is stuck in the socket due to age, weather, or other factors.
How To Install Headlight Bulbs in Volkswagen Passat B5.5 222

Most will have few problems and quickly able to swap out the bulb.

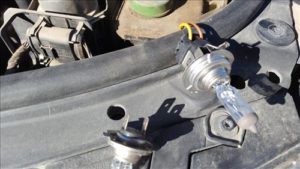

How To Install Headlight Bulbs in Volkswagen Passat B5.5 333

Here is the Headlight Bulbs on Amazon
SYLVANIA H7 SilverStar Ultra High Performance Halogen Headlight Bulb

As always if in doubt take your car to a certified mechanic.

Getting access to the left and right bulbs are different with each method shown below.

Driver Side Bulb Removal and Replacement.

1…
Remove the cover from the coolant tank blocking access.
How To Replace the Headlight Bulbs on a 2000 Volkswagen Passat

2..
Remove the cup holder covering the bulb assembly.
How To Replace the Headlight Bulbs on a 2001 Volkswagen Passat

3..
Turn the bulb assembly counter clockwise until it stops than pull it out.
Turn the bulb assembly counter clockwise

4…
The old bulb needs to be removed. Use a small screwdriver between the bulb and the socket to get it started.
How To Replace the Headlight Bulbs on a 2002 Volkswagen Passat

5…
Once the bulb has come out slightly it will take a lot of wiggling back and forth while pulling on it to get it out.
How To Replace the Headlight Bulbs on a 2004 Volkswagen Passat

6…
Once the old bulb is out a new one is inserted into the socket.
Inserting a new Bulb Passat

7…
After the bulb is in the socket gently insert it back into place and turn it clockwise to lock in.
Turn Clockwise


Bulb Removal Passenger Side
A vent needs to be removed to get to the passenger side bulb. Here are the steps.

1…
Remove the first screw.
Passat Bulb Removal Passenger Side

2…
Remove the second screw.
Passat Bulb Removal Passenger Side Second Bolt

3…
Remove the air vent.
How To Replace the Headlight Bulbs on a 2005 Volkswagen Passat


Summary
Removing and replacing the headlight lamps on a Volkswagen Passat is not difficult in complexity.

The difficulty will be how the car has aged and the bulbs are stuck into place.

Certain climates will age a car differently than others which can lead to corrosion and rust which can make them hard to get out.
