How to Repair 2003 Passat Trunk Latch that Will Not Close

By | August 30, 2016

How to Repair 2003 Passat Trunk Latch that Will Not Close

So the trunk latch on my 2003 VW Passat would not close. After reading the forums I dived in and below is what I have found about them.

I believe this is the same procedure for 1998-2005 Passats since the parts is the same.

First of all my problem was a piece of plastic had gotten jammed into the latch which I didn’t find unit I had it fully removed from the car.

Here is the small piece of plastic that was jammed in the lock stopping it from closing.
Repair 2003 Passat Trunk Latch that Will Not Close
I was lucky as most the forums said it would need to be replaced.

Removing the latch is not too difficult and requires a 10mm socket to remove two nuts that hold it in place. There are also a two connections and a wiring harness that needs to be removed.

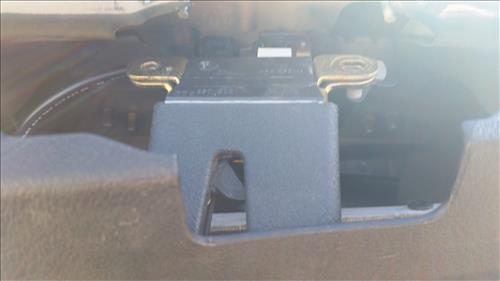

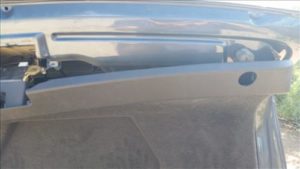

First thing to do is pull on the hard plastic trunk covering that will pop out. Most forums said it all needed to come out but I found this unnecessary.
Repair 2003 Passat Trunk Latch that Will Not Close

20160830_145451

20160830_145459

Two 10mm nuts hold it in place and need removed.
2004 VW Trunk Latch Removal

Remove the plastic clip.
Plastic clip

One latch simply turns side ways until it slides out.
first latch

The other latch will pop out of a plastic holder with a screwdriver.
Second latch

Second latch 2

Here is the latch out of the car.
2003 VW Trunk Latch Replacment

The outer hard plastic shell comes off by snapping it from the two white plastic clips.
VW Trunk Latch Repair 2002

Once the two clips are snapped off it folds out and can be pulled off.
Hard Plastic Removed

The Cherry Switch that shows if it is closed with the dashboard light comes out easily.
Cherry Switch

The swicth can be tested with a multi meter.
20160830_145947

I couldn’t get a good picture but through the top deep inside is a spring that may have come off and needs checked.
Spring

Of course as stated above my problem was a small plastic piece that held it from closing.
Done 2003

I may still need to replace the whole latch and some point. They are not to expensive.

Here is the Trunk Latch on Amazon
1998-2005 VW Volkswagen Passat Sedan Rear Trunk Latch Lock GENUINE OEM BRAND NEW


Summary
Replacing the trunk latch on a 1998-2005 VW Volkswagen Passat is not difficult and a DIY backyard mechanic job, as always call a professional if in doubt.

I am unsure where the plastic piece came from as it didn’t look like a piece broke from the latch and it all worked well enough after getting it out.

Putting it all back together is as easy as the removal just take your time. I had no issues.
